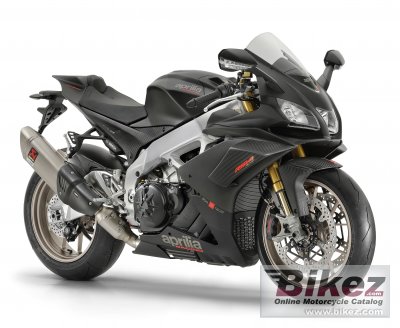

ModelAprilia RSV4 1100 Factory
Displacement1078.00 ccm (65.78 cubic inches)
TypeLongitudinal 65° V-4
Bore/Stroke81.0 x 52.3 mm (3.2 x 2.1 inches)
FuelingInjection. Airbox with front dynamic air intakes. 4 Weber-Marelli 48-mm throttle bodies with 4 injectors and latest generation Ride-by-Wire engine management. Choice of three different engine maps selectable by the rider with bike in motion: T (Track), S (Sport), R
IgnitionMagneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and “stick-coil” type coils
Exhaust4 into 2 into 1 layout, single oxygen sensor, lateral single silencer with ECU-controlled bypass valve and integrated trivalent catalytic converter (Euro 3)
LubricationWet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling)
ClutchMultiplate wet clutch with mechanical slipper system.
DrivelineStraight cut gears and integrated flexible coupling, drive ratio: 73/44 primary drive. Chain 42/16 final drive.
Horespower217.00 HP (158.4 kW)
Torque122.00 Nm (12.4 kgf-m or 90.0 ft.lbs)
Top SpeedTop speed
Fuel Economy & Polution
Fuel Consumption6.67 litres/100 km (15.0 km/l or 35.27 mpg)
Fuel Capacity18.50 litres (4.89 gallons)
Emissions154.7 CO2 g/km. (CO2 - Carbon dioxide emission)
Frame TypeAluminium dual beam chassis with cast and pressed sheet elements. (Sachs steering damper on APRC version)
Trail104 mm (4.1 inches)
Front SuspensionÖhlins fork with TIN surface treatment. Forged aluminium radial calliper mounting bracket. Completely adjustable spring preload and hydraulic compression and rebound damping.
Front Travel120 mm (4.7 inches)
Rear SuspensionDouble braced aluminium swingarm; mixed low thickness and sheet casting technology. Sachs monoshock with piggy-back, fully adjustable in: spring preload, hydraulics in compression and rebound. APS progressive linkages.
Rear Travel130 mm (5.1 inches)
Seat Height851 mm (33.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,090 mm (42.9 inches)
Total Length2,052 mm (80.8 inches)
Total Width735 mm (28.9 inches)
Ground Clearance125 mm (4.9 inches)
Wheelbase1,439 mm (56.7 inches)
Dry Weight177.0 kg (390.2 pounds)
Wet Weight199.0 kg (438.7 pounds)
Wheels & Brakes
Front BrakesDouble disc. ABS. Floating stainless steel discs with lightweight stainless steel rotor with 6 studs. Brembo radial callipers with 4 diam. horizontally opposed 32 mm pistons. Sintered pads. Axial pump master cylinder and metal braided brake hoses.
Front Brake Diameter330 mm (13.0 inches)
Rear BrakesSingle disc. ABS. Brembo floating calliper.
Rear Brake Diameter220 mm (8.7 inches)
WheelsCast aluminium wheels with 3 split spoke design.
